Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Number of poles3
Width in number of modular spacings-
Rated operating voltage1000 - 1000V
Degree of protection (IP), front sideIP00
Number of switches1
Depth145.5mm
Number of auxiliary contacts as change-over contact0
Number of auxiliary contacts as normally closed contact0
Rated operation power at AC-3, 400 V-kW
Conditioned rated short-circuit current Iq-kA
Rated permanent current Iu-A
Width472.5mm
Number of auxiliary contacts as normally open contact0
Height376.5mm
Version as reversing switchNo
Voltage release optionalNo
Degree of protection (NEMA)Other
Device constructionComplete device in housing
Suitable for front mounting 4-holeNo
Rated short-time withstand current lcw55kA
Rated permanent current at AC-21, 400 V-A
Suitable for front mounting centreNo
Version as maintenance-/service switchYes
Suitable for distribution board installationYes
Max. rated operation voltage Ue AC1000V
Switching power at 400 V-kW
InterlockableNo
Colour control elementBlack
Version as main switchYes
Version as safety switchNo
Motor drive optionalNo
Version as emergency stop installationNo
Suitable for intermediate mountingNo
Type of electrical connection of main circuitBolt connection
Type of control elementLong turning handle
Motor drive integratedNo
Rated operation power at AC-23, 400 V-kW
Suitable for floor mountingNo
Rated permanent current at AC-23, 400 V-A
With pre-assembled cablingNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

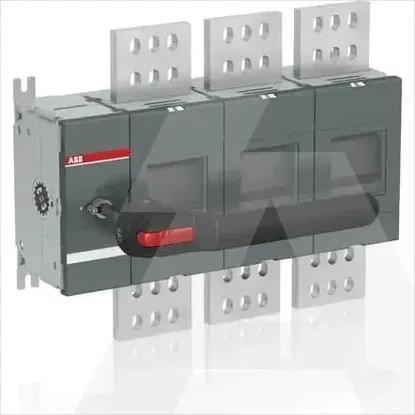

1SCA104972R1001 | OT2500E03P
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Switch disconnector (low voltage)
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Number of poles
3
Width in number of modular spacings
-
Rated operating voltage
1000 .. 1000V
Degree of protection (IP), front side
IP00
Number of switches
1
Depth
145.5mm
Number of auxiliary contacts as change-over contact
0
Number of auxiliary contacts as normally closed contact
0
Rated operation power at AC-3, 400 V
-kW
Conditioned rated short-circuit current Iq
-kA
Rated permanent current Iu
-A
Width
472.5mm
Number of auxiliary contacts as normally open contact
0
Height
376.5mm
Version as reversing switch
Voltage release optional
Degree of protection (NEMA)
Other
Device construction
Complete device in housing
Suitable for front mounting 4-hole
Rated short-time withstand current lcw
55kA
Rated permanent current at AC-21, 400 V
-A
Suitable for front mounting centre
Version as maintenance-/service switch
Suitable for distribution board installation
Max. rated operation voltage Ue AC
1000V
Switching power at 400 V
-kW
Interlockable
Colour control element
Black
Version as main switch
Version as safety switch
Motor drive optional
Version as emergency stop installation
Suitable for intermediate mounting
Type of electrical connection of main circuit
Bolt connection
Type of control element
Long turning handle
Motor drive integrated
Rated operation power at AC-23, 400 V
-kW
Suitable for floor mounting
Rated permanent current at AC-23, 400 V
-A
With pre-assembled cabling
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
