Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Height96.5mm
Width100mm
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Rated permanent current Iu115A
Conditioned rated short-circuit current Iq-kA
Rated operating voltage750 - 750V
Rated operation power at AC-3, 400 V-kW
Depth74mm
Number of poles4
Width in number of modular spacings-
Suitable for floor mountingNo
Rated operation power at AC-23, 400 V37kW
Suitable for distribution board installationYes
Degree of protection (IP), front sideIP20
Version as main switchYes
Version as maintenance-/service switchYes
Type of electrical connection of main circuitScrew connection
Suitable for intermediate mountingNo
Rated short-time withstand current lcw2.5kA
Version as safety switchNo
Version as emergency stop installationNo
Number of auxiliary contacts as change-over contact0
Type of control elementOther
Number of switches1
Max. rated operation voltage Ue AC750V
Motor drive integratedNo
InterlockableNo
Voltage release optionalNo
Switching power at 400 V37kW
Motor drive optionalNo
Rated permanent current at AC-21, 400 V100A
Suitable for front mounting 4-holeNo
Device constructionComplete device in housing
Suitable for front mounting centreNo
Degree of protection (NEMA)Other
Rated permanent current at AC-23, 400 V80A
Version as reversing switchNo
With pre-assembled cablingNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

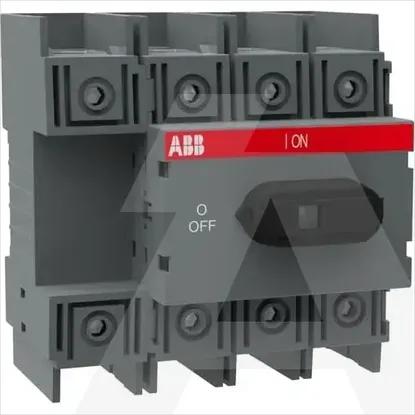

1SCA105020R1001 | OT100F4N1
