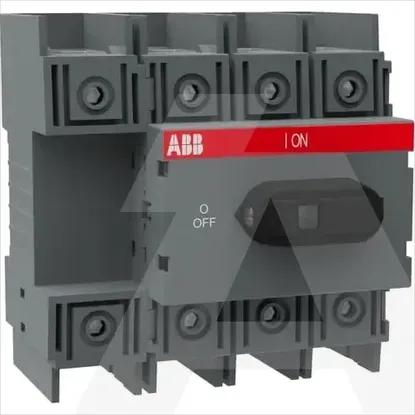

1SCA105055R1001 | OT125F4N1
Code: 1982011
ManufacturerABB
Catalog number1SCA105055R1001
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code6417019391854
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Version as safety switchNo
Height100mm
Number of auxiliary contacts as normally open contact0
Conditioned rated short-circuit current Iq-kA
InterlockableNo
Width in number of modular spacings-
Depth74mm
Motor drive integratedNo
Version as emergency stop installationNo
Rated operation power at AC-3, 400 V-kW
Number of auxiliary contacts as change-over contact0
Number of auxiliary contacts as normally closed contact0
Version as maintenance-/service switchYes
Rated short-time withstand current lcw2.5kA
Type of control elementOther
Rated operation power at AC-23, 400 V45kW
Type of electrical connection of main circuitScrew connection
Width96.5mm
Degree of protection (IP), front sideIP20
Number of switches1
Version as main switchYes
Rated operating voltage750 - 750V
Suitable for front mounting 4-holeNo
Degree of protection (NEMA)Other
With pre-assembled cablingNo
Suitable for front mounting centreNo
Switching power at 400 V45kW
Voltage release optionalNo
Suitable for distribution board installationYes
Rated permanent current at AC-23, 400 V90A
Motor drive optionalNo
Version as reversing switchNo
Suitable for intermediate mountingNo
Suitable for floor mountingNo
Device constructionComplete device in housing
Rated permanent current at AC-21, 400 V125A
Rated permanent current Iu125A
Number of poles4
Max. rated operation voltage Ue AC750V
