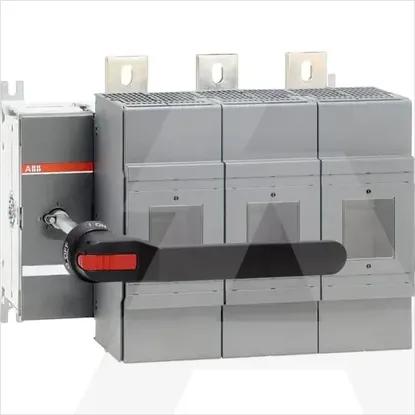

1SCA105238R1001 | OS1250DA03P
Code: 1982020
ManufacturerABB
Catalog number1SCA105238R1001
TypeFuse switch disconnector
CategoryFuse switch disconnector
EAN code6417019394268
Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Cable entryOther
Type of electrical connection of main circuitBolt connection
Rated operation power at AC-23, 400 V1000kW
Version as main switchYes
Version as safety switchYes
Motor drive integratedNo
Conditioned rated short-circuit current Iq80kA
Type of control elementLong turning handle
Version as emergency stop installationNo
Suitable for floor mountingNo
Suitable for front mountingNo
Rated short-time withstand current lcw40kA
Equipped with connectorsYes
With error protectionNo
Suitable for busbar mountingYes
Motor drive optionalNo
Position control elementLeft
Rated permanent current Iu1000A
Number of poles3
Suitable for fusesNH4a
Max. rated operation voltage Ue AC1000V
