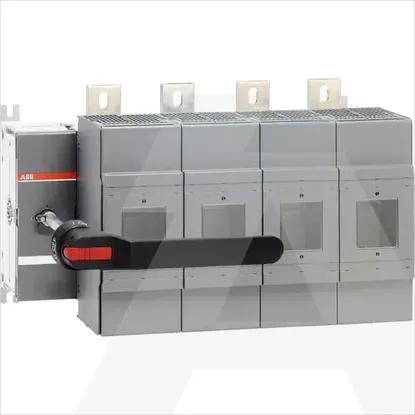

1SCA105240R1001 | OS1250DA04FP
Code: 1982022
ManufacturerABB
Catalog number1SCA105240R1001
TypeFuse switch disconnector
CategoryFuse switch disconnector
EAN code6417019394244
Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Motor drive integratedNo
Version as main switchYes
Version as emergency stop installationNo
Cable entryOther
Conditioned rated short-circuit current Iq80kA
Type of control elementLong turning handle
Type of electrical connection of main circuitBolt connection
Rated operation power at AC-23, 400 V1000kW
Rated short-time withstand current lcw40kA
Version as safety switchYes
Equipped with connectorsYes
Motor drive optionalNo
Position control elementLeft
With error protectionNo
Suitable for busbar mountingYes
Suitable for front mountingNo
Suitable for floor mountingNo
Rated permanent current Iu1000A
Number of poles4
Suitable for fusesNH4a
Max. rated operation voltage Ue AC1000V
