Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Version as main switchYes
Version as emergency stop installationNo
Version as reversing switchNo
Version as safety switchNo
Version as maintenance-/service switchYes
Max. rated operation voltage Ue AC1000V
Rated permanent current at AC-23, 400 V1250A
Rated permanent current at AC-21, 400 V-A
Rated operation power at AC-23, 400 V710kW
Conditioned rated short-circuit current Iq-kA
Switching power at 400 V710kW
Number of switches1
Rated short-time withstand current lcw50kA
Rated permanent current Iu800A
Rated operation power at AC-3, 400 V-kW
Rated operating voltage1000 - 1000V
Motor drive optionalNo
Motor drive integratedNo
Suitable for floor mountingNo
Device constructionComplete device in housing
Voltage release optionalNo
Suitable for front mounting centreNo
Suitable for front mounting 4-holeNo
Number of auxiliary contacts as change-over contact0
Number of auxiliary contacts as normally closed contact0
InterlockableNo
Suitable for intermediate mountingNo
Type of control elementOther
Width334.5mm
Suitable for distribution board installationYes
Degree of protection (IP), front sideIP00
Degree of protection (NEMA)Other
Number of poles3
With pre-assembled cablingNo
Type of electrical connection of main circuitBolt connection
Number of auxiliary contacts as normally open contact0
Depth151.5mm
Width in number of modular spacings-
Height372mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

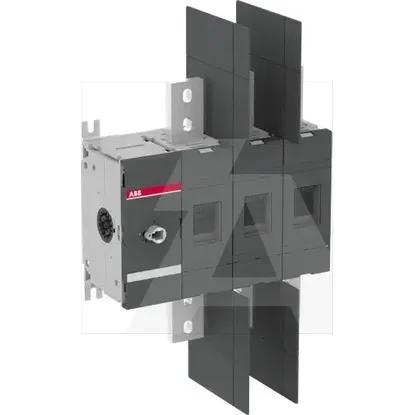

1SCA105635R1001 | OT800U03
