Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Width334.5mm
Height372mm
Width in number of modular spacings-
Number of auxiliary contacts as normally closed contact0
Number of poles3
Degree of protection (IP), front sideIP00
Number of switches1
Conditioned rated short-circuit current Iq-kA
Rated permanent current Iu800A
Number of auxiliary contacts as normally open contact0
Depth151.5mm
Number of auxiliary contacts as change-over contact0
Rated operation power at AC-3, 400 V-kW
Rated operating voltage1000 - 1000V
Type of control elementOther
Version as main switchYes
Type of electrical connection of main circuitBolt connection
Rated operation power at AC-23, 400 V710kW
Rated short-time withstand current lcw50kA
Motor drive integratedNo
InterlockableNo
Version as maintenance-/service switchYes
Version as safety switchNo
Version as emergency stop installationNo
Suitable for floor mountingNo
Max. rated operation voltage Ue AC1000V
Suitable for distribution board installationYes
Voltage release optionalNo
Rated permanent current at AC-21, 400 V-A
Motor drive optionalNo
Suitable for front mounting centreNo
Device constructionComplete device in housing
Degree of protection (NEMA)Other
Rated permanent current at AC-23, 400 V1250A
Version as reversing switchNo
With pre-assembled cablingNo
Switching power at 400 V710kW
Suitable for front mounting 4-holeNo
Suitable for intermediate mountingNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

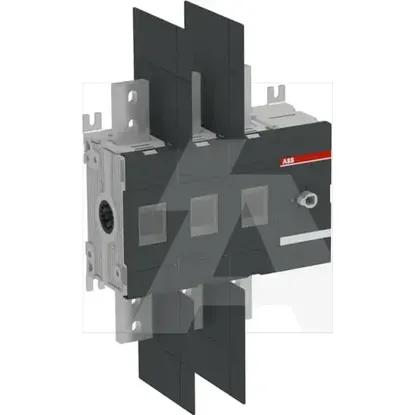

1SCA105640R1001 | OT800U30
