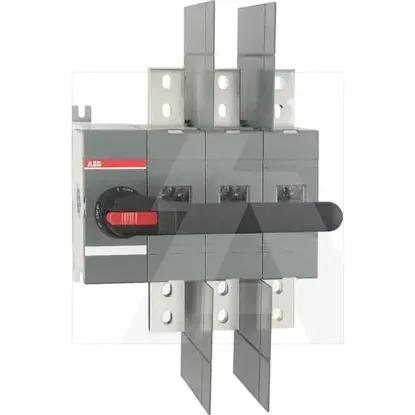

1SCA105665R1001 | OT800U03P
Code: 1982046
ManufacturerABB
Catalog number1SCA105665R1001
TypeSwitch disconnector
CategorySwitch disconnector
EAN code6417019395975
Details
- •OT800U03P SWITCH-DISCONNECTOR
- •Low-voltage industrial components
- •Switch disconnector
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Number of auxiliary contacts as normally closed contact0
Conditioned rated short-circuit current Iq-kA
Number of auxiliary contacts as normally open contact0
Rated operating voltage1000 - 1000V
Degree of protection (IP), front sideOther
Rated operation power at AC-3, 400 V-kW
Motor drive integratedNo
Number of switches1
InterlockableYes
Number of auxiliary contacts as change-over contact0
Version as emergency stop installationNo
Colour control elementBlack
Rated operation power at AC-23, 400 V710kW
Version as reversing switchNo
Suitable for distribution board installationYes
Voltage release optionalNo
Version as main switchYes
Motor drive optionalNo
Degree of protection (NEMA)1
Version as maintenance-/service switchYes
Suitable for intermediate mountingNo
Rated permanent current at AC-23, 400 V1250A
Device constructionBuilt-in device fixed built-in technique
Type of electrical connection of main circuitBolt connection
Suitable for front mounting 4-holeNo
Rated permanent current at AC-21, 400 V-A
Switching power at 400 V710kW
Suitable for front mounting centreNo
Suitable for floor mountingNo
Rated short-time withstand current lcw50kA
Type of control elementLong turning handle
Version as safety switchNo
Rated permanent current Iu800A
Number of poles3
Max. rated operation voltage Ue AC1000V
