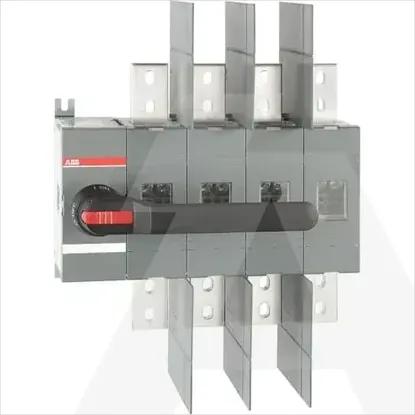

1SCA105667R1001 | OT800U04P
Code: 1982047
ManufacturerABB
Catalog number1SCA105667R1001
TypeSwitch disconnector
CategorySwitch disconnector
EAN code6417019395999
Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •ABB
Technical specifications
Number of auxiliary contacts as normally open contact0
Rated operation power at AC-3, 400 V-kW
Version as main switchYes
Number of auxiliary contacts as normally closed contact0
Rated operating voltage1000 - 1000V
Type of electrical connection of main circuitBolt connection
Type of control elementLong turning handle
Number of switches1
InterlockableYes
Version as safety switchNo
Conditioned rated short-circuit current Iq-kA
Number of auxiliary contacts as change-over contact0
Version as emergency stop installationNo
Degree of protection (IP), front sideOther
Motor drive integratedNo
Colour control elementBlack
Version as maintenance-/service switchYes
Rated operation power at AC-23, 400 V710kW
Rated short-time withstand current lcw50kA
Suitable for floor mountingNo
Suitable for distribution board installationYes
Voltage release optionalNo
Suitable for front mounting centreNo
Version as reversing switchNo
Switching power at 400 V710kW
Motor drive optionalNo
Degree of protection (NEMA)1
Suitable for intermediate mountingNo
Rated permanent current at AC-23, 400 V1250A
Rated permanent current at AC-21, 400 V-A
Device constructionBuilt-in device fixed built-in technique
Suitable for front mounting 4-holeNo
Rated permanent current Iu800A
Number of poles4
Max. rated operation voltage Ue AC1000V
