Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Height306mm
Width254.5mm
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Depth167mm
Rated operation power at AC-3, 400 V-kW
Conditioned rated short-circuit current Iq-kA
Motor drive integratedNo
Version as maintenance-/service switchYes
Rated permanent current Iu1000A
Degree of protection (IP), front sideIP00
Number of switches1
Colour control elementBlack
Suitable for floor mountingNo
Number of poles4
Suitable for front mounting 4-holeNo
Type of electrical connection of main circuitBolt connection
Width in number of modular spacings-
Number of auxiliary contacts as change-over contact0
InterlockableNo
Rated operating voltage1000 - 1000V
Rated operation power at AC-23, 400 V560kW
Suitable for front mounting centreNo
Rated short-time withstand current lcw50kA
Version as safety switchNo
Version as emergency stop installationNo
Version as main switchYes
Type of control elementLong turning handle
Suitable for intermediate mountingNo
Max. rated operation voltage Ue AC1000V
Suitable for distribution board installationYes
Motor drive optionalNo
Device constructionComplete device in housing
Voltage release optionalNo
Degree of protection (NEMA)Other
Switching power at 400 V560kW
With pre-assembled cablingNo
Rated permanent current at AC-23, 400 V1000A
Rated permanent current at AC-21, 400 V1000A
Version as reversing switchNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

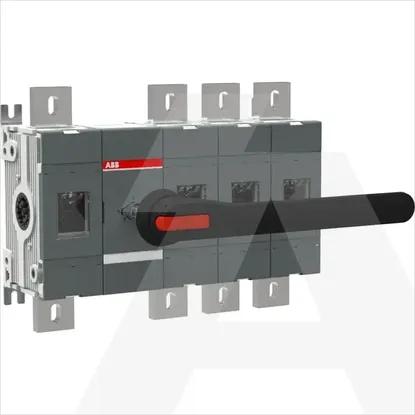

1SCA105723R1001 | OT1000E13P
