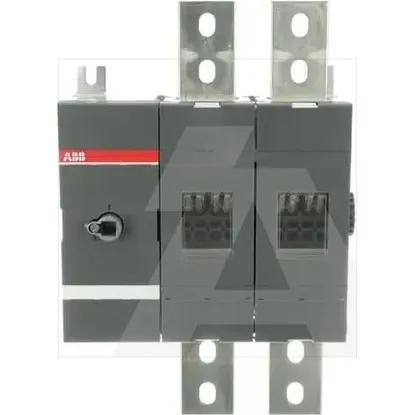

1SCA105796R1001 | OT1200U02
Code: 1982052
ManufacturerABB
Catalog number1SCA105796R1001
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code6417019396941
Details
- •OT1200U02 SWITCH-DISCONNECTOR
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Width254.5mm
Height372mm
Rated operation power at AC-3, 400 V-kW
Rated operating voltage1000 - 1000V
Conditioned rated short-circuit current Iq-kA
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as change-over contact0
Number of switches1
Version as emergency stop installationNo
Degree of protection (IP), front sideIP00
Version as main switchYes
Depth145.5mm
InterlockableNo
Number of auxiliary contacts as normally open contact0
Motor drive integratedNo
Width in number of modular spacings-
Type of control elementOther
Version as safety switchNo
Type of electrical connection of main circuitBolt connection
Rated operation power at AC-23, 400 V-kW
Version as maintenance-/service switchYes
Rated short-time withstand current lcw50kA
Suitable for floor mountingNo
Motor drive optionalNo
Switching power at 400 V-kW
Device constructionComplete device in housing
Suitable for front mounting centreNo
Rated permanent current at AC-21, 400 V-A
Rated permanent current at AC-23, 400 V-A
Suitable for intermediate mountingNo
Degree of protection (NEMA)Other
Suitable for distribution board installationYes
Suitable for front mounting 4-holeNo
With pre-assembled cablingNo
Voltage release optionalNo
Version as reversing switchNo
Rated permanent current Iu-A
Number of poles2
Max. rated operation voltage Ue AC1000V
