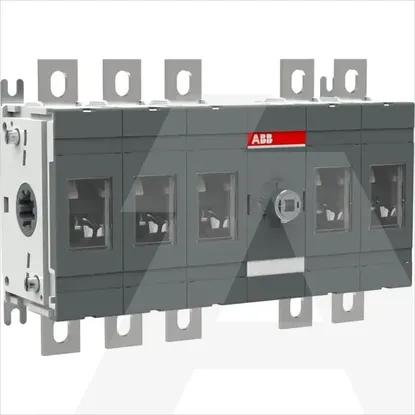

1SCA105812R1001 | OT250E32
Code: 1982054
ManufacturerABB
Catalog number1SCA105812R1001
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code6417019397306
Details
- •OT250E32 SWITCH-DISCONNECTOR
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Number of auxiliary contacts as normally closed contact0
Conditioned rated short-circuit current Iq-kA
Depth82.5mm
Height150mm
Number of switches1
Degree of protection (IP), front sideIP00
Rated operating voltage1000 - 1000V
Width in number of modular spacings-
Number of auxiliary contacts as change-over contact0
Rated operation power at AC-3, 400 V-kW
Number of auxiliary contacts as normally open contact0
Version as maintenance-/service switchYes
Motor drive integratedNo
Version as safety switchNo
Version as emergency stop installationNo
InterlockableNo
Type of electrical connection of main circuitBolt connection
Type of control elementOther
Width220.5mm
Version as main switchYes
Rated operation power at AC-23, 400 V-kW
Rated short-time withstand current lcw8kA
Suitable for distribution board installationYes
Suitable for floor mountingNo
Suitable for intermediate mountingNo
Motor drive optionalNo
Device constructionComplete device in housing
Suitable for front mounting 4-holeNo
Rated permanent current at AC-21, 400 V-A
Voltage release optionalNo
Suitable for front mounting centreNo
Degree of protection (NEMA)Other
Switching power at 400 V-kW
Version as reversing switchNo
Rated permanent current at AC-23, 400 V-A
With pre-assembled cablingNo
Rated permanent current Iu250A
Number of poles5
Max. rated operation voltage Ue AC1000V
