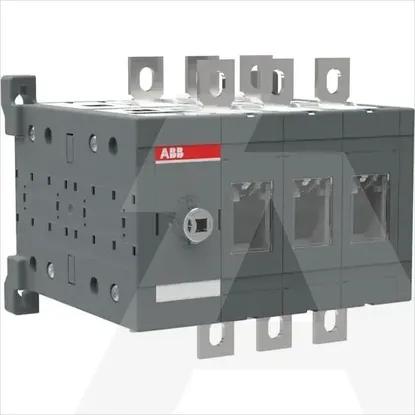

1SCA105816R1001 | OT160E03CL
Code: 1982055
ManufacturerABB
Catalog number1SCA105816R1001
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code6417019397023
Details
- •OT160E03CL CHANGE-OVER SWITCH
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Number of auxiliary contacts as normally open contact0
Width170mm
Rated operation power at AC-3, 400 V-kW
Height150mm
Depth160mm
Number of auxiliary contacts as normally closed contact0
Conditioned rated short-circuit current Iq-kA
Width in number of modular spacings-
Rated operating voltage1000 - 1000V
Number of switches1
Type of electrical connection of main circuitScrew connection
Degree of protection (IP), front sideIP20
Motor drive integratedNo
Rated short-time withstand current lcw8kA
Version as emergency stop installationNo
Number of auxiliary contacts as change-over contact0
Version as maintenance-/service switchYes
Rated operation power at AC-23, 400 V90kW
Version as main switchYes
InterlockableYes
Type of control elementOther
Version as safety switchNo
Suitable for front mounting centreNo
Motor drive optionalNo
Suitable for front mounting 4-holeYes
Colour control elementBlack
Suitable for intermediate mountingNo
Suitable for distribution board installationYes
Suitable for floor mountingNo
Device constructionBuilt-in device plug-in technique
Rated permanent current at AC-21, 400 V160A
Degree of protection (NEMA)1
With pre-assembled cablingNo
Rated permanent current at AC-23, 400 V160A
Version as reversing switchNo
Voltage release optionalNo
Switching power at 400 V90kW
Rated permanent current Iu-A
Number of poles3
Max. rated operation voltage Ue AC1000V
