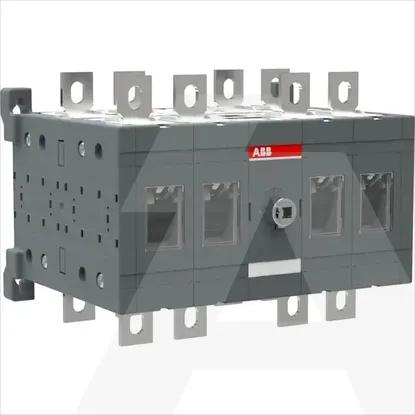

1SCA105956R1001 | OT160E22C
Code: 1982056
ManufacturerABB
Catalog number1SCA105956R1001
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code6417019398747
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Rated operation power at AC-3, 400 V-kW
Width in number of modular spacings-
Depth160mm
Rated operating voltage1000 - 1000V
Conditioned rated short-circuit current Iq-kA
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Height150mm
Width205mm
Degree of protection (IP), front sideIP20
Motor drive integratedNo
Number of auxiliary contacts as change-over contact0
InterlockableYes
Number of switches1
Type of electrical connection of main circuitScrew connection
Version as emergency stop installationNo
Rated short-time withstand current lcw8kA
Type of control elementOther
Version as main switchYes
Rated operation power at AC-23, 400 V90kW
Suitable for distribution board installationYes
Version as maintenance-/service switchYes
Suitable for floor mountingNo
Version as safety switchNo
Suitable for front mounting centreNo
Colour control elementBlack
Motor drive optionalNo
Version as reversing switchNo
Switching power at 400 V90kW
Rated permanent current at AC-21, 400 V160A
Rated permanent current at AC-23, 400 V160A
Device constructionBuilt-in device plug-in technique
With pre-assembled cablingNo
Suitable for front mounting 4-holeYes
Degree of protection (NEMA)1
Voltage release optionalNo
Suitable for intermediate mountingNo
Rated permanent current Iu-A
Number of poles4
Max. rated operation voltage Ue AC1000V
