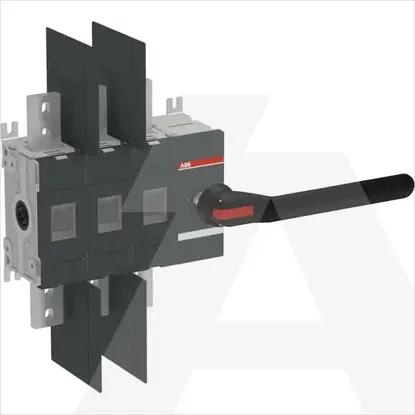

1SCA106126R1001 | OT800U30P
Code: 1982062
ManufacturerABB
Catalog number1SCA106126R1001
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code6417019399997
Details
- •OT800U30P SWITCH-DISCONNECTOR
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Depth151.5mm
Rated operation power at AC-3, 400 V-kW
Width334.5mm
Height372mm
Number of auxiliary contacts as change-over contact0
Version as maintenance-/service switchYes
Version as main switchYes
Version as safety switchNo
Number of auxiliary contacts as normally closed contact0
Motor drive integratedNo
Rated operating voltage1000 - 1000V
Number of auxiliary contacts as normally open contact0
Width in number of modular spacings-
Number of switches1
Type of electrical connection of main circuitBolt connection
Rated short-time withstand current lcw50kA
Version as emergency stop installationNo
Degree of protection (IP), front sideIP00
Rated operation power at AC-23, 400 V710kW
Conditioned rated short-circuit current Iq-kA
Colour control elementBlack
Type of control elementLong turning handle
InterlockableNo
Suitable for front mounting centreNo
Suitable for front mounting 4-holeNo
Suitable for floor mountingNo
Suitable for distribution board installationYes
Voltage release optionalNo
Version as reversing switchNo
Suitable for intermediate mountingNo
Switching power at 400 V710kW
Motor drive optionalNo
Rated permanent current at AC-21, 400 V-A
Degree of protection (NEMA)Other
Device constructionComplete device in housing
With pre-assembled cablingNo
Rated permanent current at AC-23, 400 V1250A
Rated permanent current Iu800A
Number of poles3
Max. rated operation voltage Ue AC1000V
