Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Width334.5mm
Height372mm
Depth151.5mm
Number of auxiliary contacts as normally open contact0
Number of poles3
Rated permanent current Iu800A
Number of auxiliary contacts as normally closed contact0
Rated operating voltage1000 - 1000V
Rated operation power at AC-3, 400 V-kW
InterlockableNo
Conditioned rated short-circuit current Iq-kA
Number of switches1
Number of auxiliary contacts as change-over contact0
Degree of protection (IP), front sideIP00
Width in number of modular spacings-
Type of electrical connection of main circuitBolt connection
Version as main switchYes
Motor drive integratedNo
Version as safety switchNo
Type of control elementLong turning handle
Version as emergency stop installationNo
Version as maintenance-/service switchYes
Suitable for front mounting 4-holeNo
Colour control elementBlack
Suitable for front mounting centreNo
Rated operation power at AC-23, 400 V710kW
Suitable for floor mountingNo
Rated short-time withstand current lcw50kA
Suitable for intermediate mountingNo
Device constructionComplete device in housing
Motor drive optionalNo
Max. rated operation voltage Ue AC1000V
Voltage release optionalNo
Suitable for distribution board installationYes
Version as reversing switchNo
Rated permanent current at AC-23, 400 V1250A
Degree of protection (NEMA)Other
Switching power at 400 V710kW
Rated permanent current at AC-21, 400 V-A
With pre-assembled cablingNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

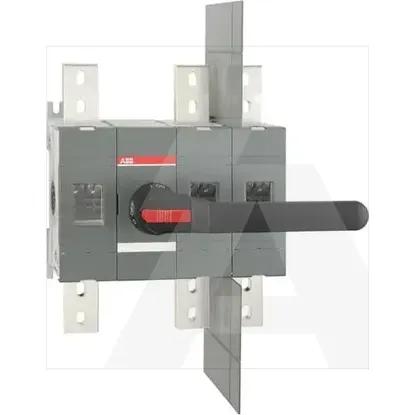

1SCA106128R1001 | OT800U12P
