Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Version as maintenance-/service switchYes
Version as safety switchNo
Version as main switchYes
Version as emergency stop installationNo
Rated operation power at AC-3, 400 V-kW
Rated permanent current at AC-21, 400 V-A
Rated short-time withstand current lcw50kA
Rated permanent current Iu-A
Rated permanent current at AC-23, 400 V1250A
Rated operating voltage1000 - 1000V
Version as reversing switchNo
Rated operation power at AC-23, 400 V710kW
Switching power at 400 V710kW
Max. rated operation voltage Ue AC1000V
Conditioned rated short-circuit current Iq-kA
Number of switches1
Number of auxiliary contacts as normally open contact0
Voltage release optionalNo
Number of auxiliary contacts as normally closed contact0
Suitable for front mounting centreNo
Number of auxiliary contacts as change-over contact0
Device constructionComplete device in housing
Suitable for floor mountingNo
Suitable for distribution board installationYes
Motor drive optionalNo
Suitable for front mounting 4-holeNo
Suitable for intermediate mountingNo
Width334.5mm
Motor drive integratedNo
InterlockableNo
Type of control elementOther
Degree of protection (NEMA)Other
Type of electrical connection of main circuitBolt connection
Number of poles3
With pre-assembled cablingNo
Degree of protection (IP), front sideIP00
Width in number of modular spacings-
Depth145.5mm
Height372mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

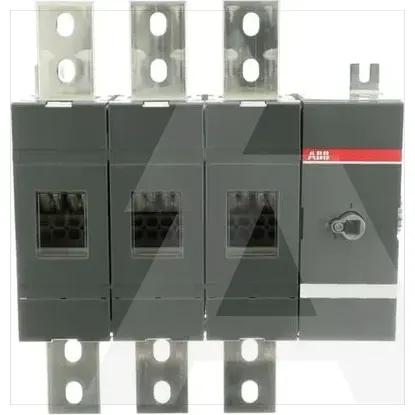

1SCA106130R1001 | OT1200U30
