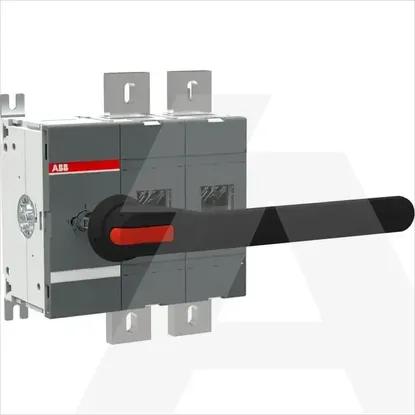

1SCA106136R1001 | OT1250E02P
Code: 1982065
ManufacturerABB
Catalog number1SCA106136R1001
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code6417019398884
Details
- •OT1250E02P SWITCH-DISCONNECTOR
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Rated operation power at AC-3, 400 V-kW
Width254.5mm
Depth167mm
Height306mm
Number of auxiliary contacts as normally open contact0
Motor drive integratedNo
Conditioned rated short-circuit current Iq-kA
Number of auxiliary contacts as normally closed contact0
InterlockableNo
Rated operating voltage1000 - 1000V
Type of electrical connection of main circuitBolt connection
Type of control elementLong turning handle
Width in number of modular spacings-
Degree of protection (IP), front sideIP00
Version as emergency stop installationNo
Number of switches1
Number of auxiliary contacts as change-over contact0
Version as safety switchNo
Suitable for distribution board installationYes
Rated operation power at AC-23, 400 V710kW
Colour control elementBlack
Version as maintenance-/service switchYes
Version as main switchYes
Suitable for intermediate mountingNo
Rated short-time withstand current lcw50kA
Suitable for floor mountingNo
Suitable for front mounting 4-holeNo
Suitable for front mounting centreNo
Rated permanent current at AC-21, 400 V1250A
Voltage release optionalNo
Switching power at 400 V710kW
Device constructionComplete device in housing
Motor drive optionalNo
Version as reversing switchNo
Rated permanent current at AC-23, 400 V1250A
Degree of protection (NEMA)Other
With pre-assembled cablingNo
Rated permanent current Iu1250A
Number of poles2
Max. rated operation voltage Ue AC1000V
