Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Number of auxiliary contacts as normally open contact0
Rated permanent current Iu1000A
Number of auxiliary contacts as change-over contact0
Width414.5mm
Width in number of modular spacings-
Rated operation power at AC-3, 400 V-kW
Number of poles4
Degree of protection (IP), front sideIP00
Rated operating voltage1000 - 1000V
Depth145.5mm
Height306mm
Conditioned rated short-circuit current Iq-kA
Number of switches1
InterlockableNo
Number of auxiliary contacts as normally closed contact0
Version as emergency stop installationNo
Suitable for intermediate mountingNo
Suitable for floor mountingNo
Version as safety switchNo
Suitable for front mounting 4-holeNo
Device constructionComplete device in housing
Type of control elementOther
Version as maintenance-/service switchYes
Rated operation power at AC-23, 400 V560kW
Rated short-time withstand current lcw50kA
Motor drive optionalNo
Voltage release optionalNo
Version as main switchYes
Motor drive integratedNo
Suitable for distribution board installationYes
Suitable for front mounting centreNo
Type of electrical connection of main circuitBolt connection
Max. rated operation voltage Ue AC1000V
Rated permanent current at AC-23, 400 V1000A
Rated permanent current at AC-21, 400 V1000A
Version as reversing switchNo
With pre-assembled cablingNo
Switching power at 400 V560kW
Degree of protection (NEMA)Other
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

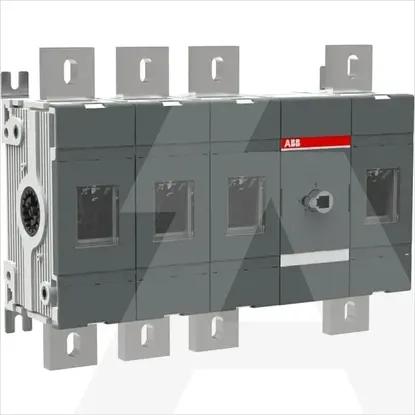

1SCA106348R1001 | OT1000E31
