Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Number of auxiliary contacts as normally open contact0
Rated operation power at AC-3, 400 V-kW
Height185mm
Number of auxiliary contacts as normally closed contact0
Width265mm
Rated permanent current Iu-A
Number of poles4
Rated operating voltage1000 - 1000V
Conditioned rated short-circuit current Iq-kA
Degree of protection (IP), front sideIP20
Number of auxiliary contacts as change-over contact0
Number of switches1
Depth203mm
Width in number of modular spacings-
Type of electrical connection of main circuitScrew connection
InterlockableYes
Motor drive integratedNo
Rated operation power at AC-23, 400 V160kW
Version as main switchYes
Version as emergency stop installationNo
Suitable for intermediate mountingNo
Colour control elementBlack
Rated permanent current at AC-21, 400 V315A
Suitable for distribution board installationYes
Suitable for floor mountingNo
Version as safety switchNo
Type of control elementOther
Version as maintenance-/service switchYes
Motor drive optionalNo
Rated short-time withstand current lcw15kA
Switching power at 400 V160kW
Suitable for front mounting 4-holeYes
Max. rated operation voltage Ue AC1000V
Device constructionBuilt-in device plug-in technique
Suitable for front mounting centreNo
Voltage release optionalNo
Degree of protection (NEMA)1
Rated permanent current at AC-23, 400 V315A
Version as reversing switchNo
With pre-assembled cablingNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

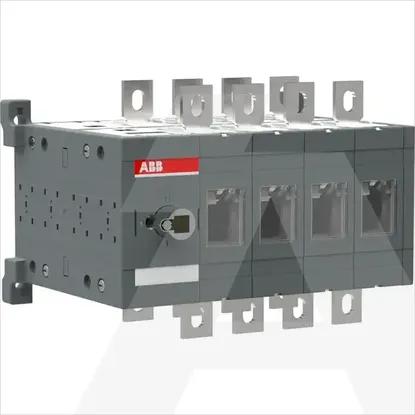

1SCA106406R1001 | OT315E04CL
