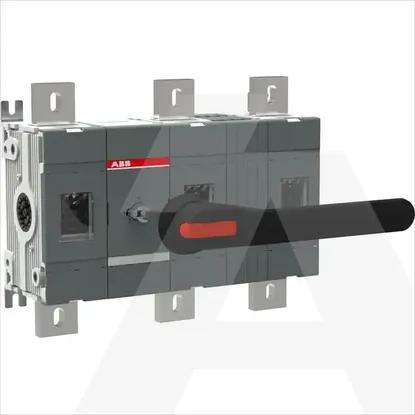

1SCA106844R1001 | OT1250E12W4P
Code: 1982079
ManufacturerABB
Catalog number1SCA106844R1001
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code6417019401294
Details
- •OT1250E12W4P SWITCH-DISCONNECTOR
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Conditioned rated short-circuit current Iq-kA
InterlockableNo
Number of auxiliary contacts as normally open contact0
Type of electrical connection of main circuitBolt connection
Rated operating voltage1000 - 1000V
Number of auxiliary contacts as change-over contact0
Depth145.5mm
Number of auxiliary contacts as normally closed contact0
Rated operation power at AC-3, 400 V-kW
Height306mm
Degree of protection (IP), front sideIP00
Motor drive integratedNo
Width in number of modular spacings-
Number of switches1
Width454.5mm
Version as emergency stop installationNo
Version as main switchYes
Version as maintenance-/service switchYes
Suitable for floor mountingNo
Type of control elementLong turning handle
Suitable for intermediate mountingNo
Rated short-time withstand current lcw50kA
Suitable for distribution board installationYes
Colour control elementBlack
Version as reversing switchNo
Voltage release optionalNo
With pre-assembled cablingNo
Suitable for front mounting centreNo
Rated permanent current at AC-21, 400 V1250A
Motor drive optionalNo
Rated permanent current at AC-23, 400 V1250A
Rated operation power at AC-23, 400 V710kW
Device constructionComplete device in housing
Degree of protection (NEMA)Other
Suitable for front mounting 4-holeNo
Switching power at 400 V710kW
Version as safety switchNo
Rated permanent current Iu1250A
Number of poles3
Max. rated operation voltage Ue AC1000V
