Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
InterlockableNo
Rated permanent current Iu1250A
Number of auxiliary contacts as normally closed contact0
Conditioned rated short-circuit current Iq-kA
Number of poles3
Depth145.5mm
Degree of protection (IP), front sideIP00
Width334.5mm
Width in number of modular spacings-
Type of control elementOther
Number of switches1
Rated operating voltage1000 - 1000V
Number of auxiliary contacts as change-over contact0
Rated operation power at AC-3, 400 V-kW
Height306mm
Version as emergency stop installationNo
Version as main switchYes
Motor drive integratedNo
Type of electrical connection of main circuitBolt connection
Number of auxiliary contacts as normally open contact0
Version as safety switchNo
Version as maintenance-/service switchYes
Suitable for distribution board installationYes
With pre-assembled cablingNo
Max. rated operation voltage Ue AC1000V
Switching power at 400 V710kW
Rated permanent current at AC-23, 400 V1250A
Rated permanent current at AC-21, 400 V1250A
Suitable for front mounting centreNo
Suitable for front mounting 4-holeNo
Voltage release optionalNo
Suitable for floor mountingNo
Version as reversing switchNo
Degree of protection (NEMA)Other
Device constructionComplete device in housing
Suitable for intermediate mountingNo
Rated short-time withstand current lcw50kA
Rated operation power at AC-23, 400 V710kW
Motor drive optionalNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

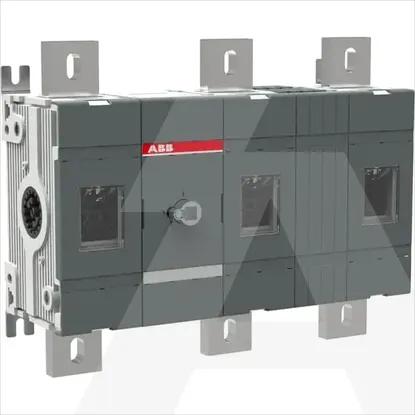

1SCA106845R1001 | OT1250E12W4
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Switch disconnector (low voltage)
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Interlockable
Rated permanent current Iu
1250A
Number of auxiliary contacts as normally closed contact
0
Conditioned rated short-circuit current Iq
-kA
Number of poles
3
Depth
145.5mm
Degree of protection (IP), front side
IP00
Width
334.5mm
Width in number of modular spacings
-
Type of control element
Other
Number of switches
1
Rated operating voltage
1000 .. 1000V
Number of auxiliary contacts as change-over contact
0
Rated operation power at AC-3, 400 V
-kW
Height
306mm
Version as emergency stop installation
Version as main switch
Motor drive integrated
Type of electrical connection of main circuit
Bolt connection
Number of auxiliary contacts as normally open contact
0
Version as safety switch
Version as maintenance-/service switch
Suitable for distribution board installation
With pre-assembled cabling
Max. rated operation voltage Ue AC
1000V
Switching power at 400 V
710kW
Rated permanent current at AC-23, 400 V
1250A
Rated permanent current at AC-21, 400 V
1250A
Suitable for front mounting centre
Suitable for front mounting 4-hole
Voltage release optional
Suitable for floor mounting
Version as reversing switch
Degree of protection (NEMA)
Other
Device construction
Complete device in housing
Suitable for intermediate mounting
Rated short-time withstand current lcw
50kA
Rated operation power at AC-23, 400 V
710kW
Motor drive optional
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
