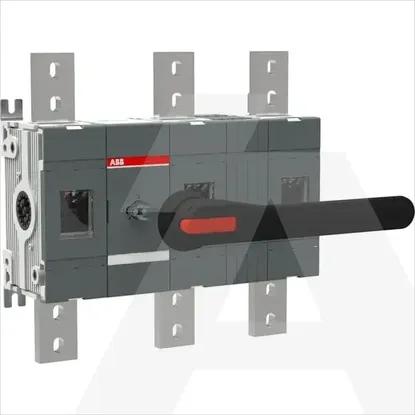

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Width454.5mm
Rated operation power at AC-3, 400 V-kW
Depth167mm
Height372mm
Type of control elementLong turning handle
Rated operation power at AC-23, 400 V710kW
Suitable for front mounting 4-holeNo
Suitable for floor mountingNo
Conditioned rated short-circuit current Iq-kA
Rated operating voltage1000 - 1000V
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
Suitable for front mounting centreNo
Rated permanent current Iu1600A
Version as safety switchNo
Colour control elementBlack
Width in number of modular spacings-
Version as maintenance-/service switchYes
Version as main switchYes
Number of auxiliary contacts as change-over contact0
Rated short-time withstand current lcw50kA
Version as emergency stop installationNo
Motor drive integratedNo
Type of electrical connection of main circuitBolt connection
Degree of protection (IP), front sideIP00
Number of switches1
Number of poles3
InterlockableNo
Suitable for distribution board installationNo
Max. rated operation voltage Ue AC1000V
Motor drive optionalNo
Voltage release optionalNo
Version as reversing switchNo
Rated permanent current at AC-23, 400 V1250A
Switching power at 400 V710kW
Rated permanent current at AC-21, 400 V1600A
Suitable for intermediate mountingNo
Device constructionComplete device in housing
Degree of protection (NEMA)Other
With pre-assembled cablingNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
1SCA106846R1001 | OT1600E12W4P
