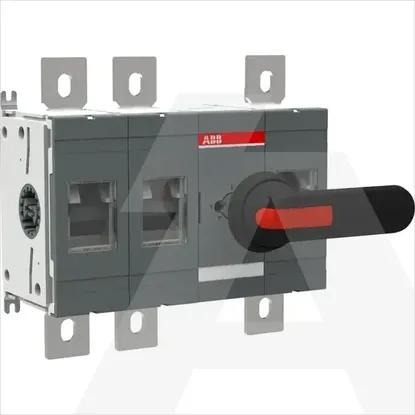

1SCA106849R1001 | OT630E21P
Code: 1982082
ManufacturerABB
Catalog number1SCA106849R1001
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code6417019403083
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Width266mm
Depth140mm
Number of auxiliary contacts as normally closed contact0
Height250mm
Number of auxiliary contacts as normally open contact0
Rated operation power at AC-3, 400 V-kW
Conditioned rated short-circuit current Iq-kA
Width in number of modular spacings-
Rated operating voltage1000 - 1000V
Motor drive optionalNo
Number of auxiliary contacts as change-over contact0
Type of electrical connection of main circuitBolt connection
Degree of protection (IP), front sideIP00
Version as emergency stop installationNo
Version as safety switchNo
Version as maintenance-/service switchYes
Suitable for front mounting centreNo
InterlockableNo
Version as main switchYes
Number of switches1
Motor drive integratedNo
Suitable for intermediate mountingNo
Suitable for floor mountingNo
Suitable for distribution board installationYes
Voltage release optionalNo
Colour control elementBlack
Rated operation power at AC-23, 400 V355kW
Rated short-time withstand current lcw20kA
Type of control elementLong turning handle
Suitable for front mounting 4-holeNo
Switching power at 400 V355kW
Device constructionComplete device in housing
Rated permanent current at AC-21, 400 V630A
Version as reversing switchNo
Degree of protection (NEMA)Other
With pre-assembled cablingNo
Rated permanent current at AC-23, 400 V630A
Rated permanent current Iu630A
Number of poles3
Max. rated operation voltage Ue AC1000V
