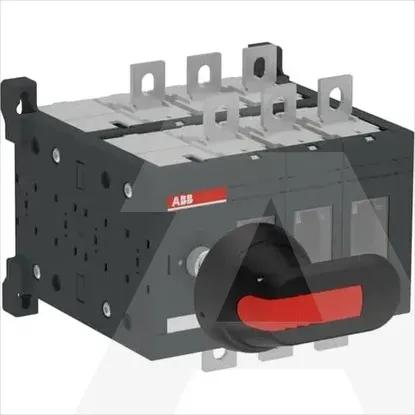

1SCA107189R1001 | OT200E03DP
Code: 1982087
ManufacturerABB
Catalog number1SCA107189R1001
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code6417019406749
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Number of auxiliary contacts as normally open contact0
Width170mm
Depth159.5mm
Number of auxiliary contacts as normally closed contact0
Rated operation power at AC-3, 400 V-kW
Height150mm
Rated operating voltage1000 - 1000V
Width in number of modular spacings-
Type of electrical connection of main circuitBolt connection
Conditioned rated short-circuit current Iq100kA
Rated short-time withstand current lcw8kA
InterlockableNo
Suitable for front mounting 4-holeNo
Suitable for floor mountingNo
Suitable for distribution board installationYes
Version as emergency stop installationNo
Number of switches1
Type of control elementLong turning handle
Version as main switchYes
Rated operation power at AC-23, 400 V110kW
Version as maintenance-/service switchYes
Motor drive integratedNo
Colour control elementBlack
Suitable for front mounting centreNo
Number of auxiliary contacts as change-over contact0
Degree of protection (IP), front sideIP00
Version as safety switchNo
Device constructionComplete device in housing
Suitable for intermediate mountingNo
Voltage release optionalNo
Motor drive optionalNo
Version as reversing switchNo
Rated permanent current at AC-21, 400 V200A
Switching power at 400 V110kW
With pre-assembled cablingNo
Rated permanent current at AC-23, 400 V200A
Degree of protection (NEMA)Other
Rated permanent current Iu200A
Number of poles6
Max. rated operation voltage Ue AC1000V
