Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Height250mm
Width201mm
InterlockableNo
Rated operation power at AC-3, 400 V-kW
Degree of protection (IP), front sideIP00
Suitable for floor mountingNo
Version as main switchYes
Number of auxiliary contacts as normally open contact0
Type of electrical connection of main circuitBolt connection
Depth140mm
Version as maintenance-/service switchYes
Rated short-time withstand current lcw20kA
Number of switches1
Number of auxiliary contacts as change-over contact0
Number of auxiliary contacts as normally closed contact0
Version as safety switchNo
Rated operation power at AC-23, 400 V-kW
Rated permanent current Iu600A
Type of control elementLong turning handle
Suitable for front mounting 4-holeNo
Conditioned rated short-circuit current Iq-kA
Number of poles2
Motor drive integratedNo
Width in number of modular spacings-
Colour control elementBlack
Rated operating voltage1000 - 1000V
Version as emergency stop installationNo
Suitable for intermediate mountingNo
Voltage release optionalNo
Max. rated operation voltage Ue AC1000V
Suitable for front mounting centreNo
Rated permanent current at AC-21, 400 V-A
Rated permanent current at AC-23, 400 V-A
Device constructionComplete device in housing
With pre-assembled cablingNo
Motor drive optionalNo
Switching power at 400 V-kW
Suitable for distribution board installationYes
Degree of protection (NEMA)Other
Version as reversing switchNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

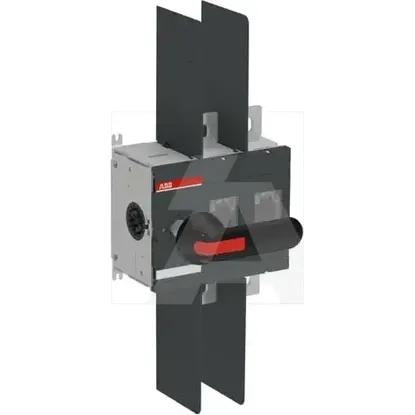

1SCA107599R1001 | OT600U02P
