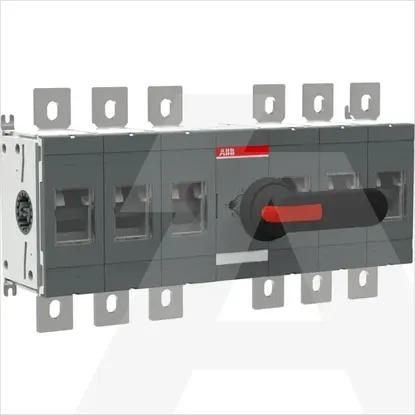

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Width461mm
Height250mm
Depth140mm
Type of electrical connection of main circuitBolt connection
Type of control elementLong turning handle
Rated operating voltage1000 - 1000V
Number of switches1
Number of auxiliary contacts as normally closed contact0
Version as emergency stop installationNo
Number of auxiliary contacts as change-over contact0
Version as maintenance-/service switchYes
Degree of protection (IP), front sideIP00
InterlockableNo
Number of auxiliary contacts as normally open contact0
Rated short-time withstand current lcw20kA
Version as main switchYes
Version as safety switchNo
Rated permanent current Iu800A
Conditioned rated short-circuit current Iq-kA
Rated operation power at AC-3, 400 V-kW
Motor drive integratedNo
Rated operation power at AC-23, 400 V-kW
Colour control elementBlack
Number of poles6
Width in number of modular spacings-
Suitable for front mounting centreNo
Suitable for floor mountingNo
Suitable for front mounting 4-holeNo
Voltage release optionalNo
Version as reversing switchNo
Rated permanent current at AC-23, 400 V-A
Suitable for distribution board installationYes
Degree of protection (NEMA)Other
Motor drive optionalNo
Switching power at 400 V-kW
Max. rated operation voltage Ue AC1000V
With pre-assembled cablingNo
Rated permanent current at AC-21, 400 V800A
Suitable for intermediate mountingNo
Device constructionComplete device in housing
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
1SCA107833R1001 | OT800E33P
