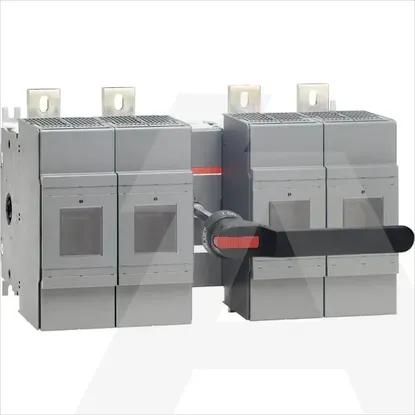

1SCA107935R1001 | OS1250DA22N2P
Code: 1982107
ManufacturerABB
Catalog number1SCA107935R1001
TypeFuse switch disconnector
CategoryFuse switch disconnector
EAN code6417019413938
Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Cable entryOther
Conditioned rated short-circuit current Iq80kA
Motor drive integratedNo
Version as safety switchYes
Version as emergency stop installationNo
Type of control elementLong turning handle
Version as main switchYes
Rated operation power at AC-23, 400 V1000kW
Type of electrical connection of main circuitBolt connection
Rated short-time withstand current lcw40kA
With error protectionNo
Position control elementFront side
Motor drive optionalNo
Equipped with connectorsYes
Suitable for busbar mountingYes
Suitable for floor mountingNo
Suitable for front mountingNo
Rated permanent current Iu1000A
Number of poles4
Suitable for fusesNH4a
Max. rated operation voltage Ue AC1000V
