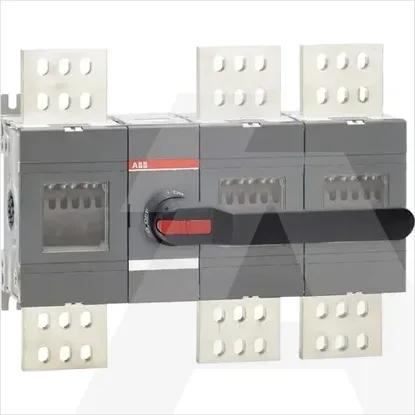

1SCA108039R1001 | OT2000E12P
Code: 1982111
ManufacturerABB
Catalog number1SCA108039R1001
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code6417019414409
Details
- •OT2000E12P SWITCH-DISCONNECTOR
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Height376.5mm
Number of auxiliary contacts as normally closed contact0
Motor drive integratedNo
Rated operation power at AC-3, 400 V-kW
Number of auxiliary contacts as normally open contact0
Width472.5mm
Degree of protection (IP), front sideIP00
Conditioned rated short-circuit current Iq-kA
InterlockableNo
Number of switches1
Rated operating voltage1000 - 1000V
Depth145.5mm
Number of auxiliary contacts as change-over contact0
Width in number of modular spacings-
Motor drive optionalNo
Rated short-time withstand current lcw55kA
Rated operation power at AC-23, 400 V-kW
Type of control elementLong turning handle
Version as main switchYes
Suitable for front mounting centreNo
Switching power at 400 V-kW
Suitable for front mounting 4-holeNo
Rated permanent current at AC-23, 400 V-A
Suitable for distribution board installationYes
Version as emergency stop installationNo
With pre-assembled cablingNo
Suitable for intermediate mountingNo
Suitable for floor mountingNo
Version as safety switchNo
Colour control elementBlack
Rated permanent current at AC-21, 400 V-A
Voltage release optionalNo
Device constructionComplete device in housing
Version as maintenance-/service switchYes
Degree of protection (NEMA)Other
Version as reversing switchNo
Type of electrical connection of main circuitBolt connection
Rated permanent current Iu-A
Number of poles3
Max. rated operation voltage Ue AC1000V
