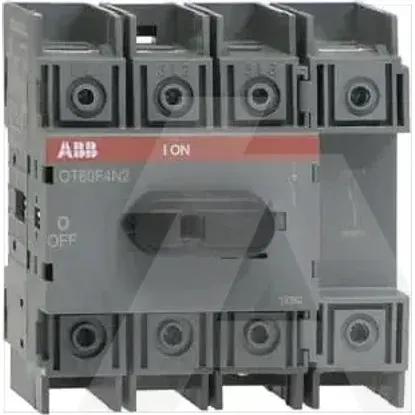

1SCA108348R1001 | OT60F4N2
Code: 1982116
ManufacturerABB
Catalog number1SCA108348R1001
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code6417019416496
Details
- •OT60F4N2 SWITCH-DISCONNECTOR
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Depth74mm
Number of auxiliary contacts as normally open contact0
Rated operation power at AC-3, 400 V-kW
Height100mm
Width96.5mm
Number of auxiliary contacts as normally closed contact0
Conditioned rated short-circuit current Iq50kA
Rated operating voltage750 - 750V
Number of auxiliary contacts as change-over contact0
Degree of protection (IP), front sideIP20
Version as maintenance-/service switchYes
InterlockableNo
Number of switches1
Type of electrical connection of main circuitScrew connection
Motor drive integratedNo
Version as safety switchNo
Width in number of modular spacings-
Version as main switchYes
Suitable for front mounting centreNo
Type of control elementOther
Version as emergency stop installationNo
Suitable for front mounting 4-holeNo
Suitable for floor mountingNo
Rated operation power at AC-23, 400 V37kW
Rated short-time withstand current lcw2.5kA
Suitable for intermediate mountingNo
Device constructionComplete device in housing
Motor drive optionalNo
Suitable for distribution board installationYes
Rated permanent current at AC-21, 400 V63A
Voltage release optionalNo
Switching power at 400 V37kW
Version as reversing switchNo
With pre-assembled cablingNo
Degree of protection (NEMA)Other
Rated permanent current at AC-23, 400 V63A
Rated permanent current Iu-A
Number of poles4
Max. rated operation voltage Ue AC750V
