Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Rated operating voltage1000 - 1000V
Number of poles4
Height150mm
Number of auxiliary contacts as normally open contact0
Rated permanent current Iu-A
Width in number of modular spacings-
Width205mm
Type of control elementLong turning handle
Version as emergency stop installationNo
Motor drive integratedNo
Rated operation power at AC-23, 400 V90kW
Colour control elementBlack
Rated short-time withstand current lcw8kA
Number of switches1
Rated operation power at AC-3, 400 V-kW
Conditioned rated short-circuit current Iq-kA
Depth160mm
Version as main switchYes
Version as maintenance-/service switchYes
Degree of protection (IP), front sideIP20
Type of electrical connection of main circuitScrew connection
Version as safety switchNo
Number of auxiliary contacts as normally closed contact0
InterlockableYes
Number of auxiliary contacts as change-over contact0
Suitable for intermediate mountingNo
Suitable for floor mountingNo
Suitable for front mounting 4-holeYes
Rated permanent current at AC-21, 400 V160A
Degree of protection (NEMA)1
Voltage release optionalNo
Switching power at 400 V90kW
Motor drive optionalNo
Rated permanent current at AC-23, 400 V160A
With pre-assembled cablingNo
Suitable for distribution board installationYes
Suitable for front mounting centreNo
Device constructionBuilt-in device plug-in technique
Version as reversing switchNo
Max. rated operation voltage Ue AC1000V
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

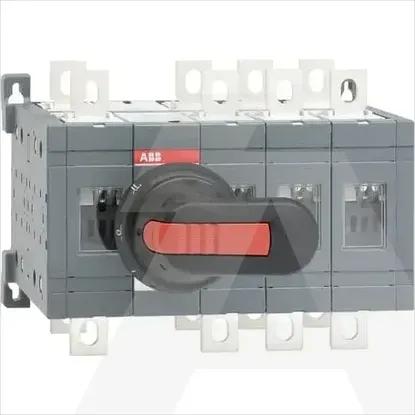

1SCA108502R1001 | OT160E13CFP
