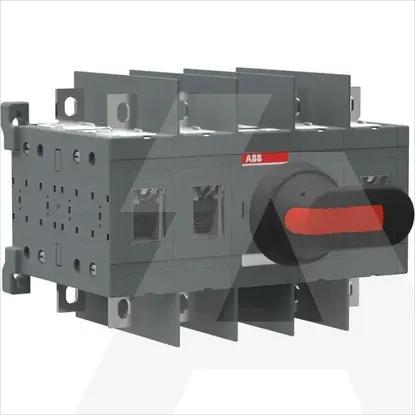

1SCA108518R1001 | OT160E22WCFP
Code: 1982121
ManufacturerABB
Catalog number1SCA108518R1001
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code6417019399829
Details
- •OT160E22WCFP CHANGE-OVER SWITCH
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Height150mm
Width237mm
Depth160mm
Number of auxiliary contacts as normally open contact0
Rated operation power at AC-3, 400 V-kW
Number of auxiliary contacts as normally closed contact0
Rated operating voltage1000 - 1000V
Motor drive integratedNo
Number of switches1
Number of auxiliary contacts as change-over contact0
Type of control elementLong turning handle
Colour control elementBlack
Suitable for front mounting 4-holeYes
Version as emergency stop installationNo
Voltage release optionalNo
Rated short-time withstand current lcw8kA
Suitable for intermediate mountingNo
Version as safety switchNo
Version as maintenance-/service switchYes
Degree of protection (IP), front sideIP20
Suitable for front mounting centreNo
Device constructionBuilt-in device plug-in technique
InterlockableYes
Type of electrical connection of main circuitScrew connection
Version as main switchYes
Rated operation power at AC-23, 400 V90kW
Width in number of modular spacings-
Motor drive optionalNo
Conditioned rated short-circuit current Iq-kA
Suitable for distribution board installationYes
Suitable for floor mountingNo
Rated permanent current at AC-21, 400 V160A
With pre-assembled cablingNo
Version as reversing switchNo
Degree of protection (NEMA)1
Switching power at 400 V90kW
Rated permanent current at AC-23, 400 V160A
Rated permanent current Iu-A
Number of poles4
Max. rated operation voltage Ue AC1000V
