Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Number of switches1
Version as main switchYes
Version as safety switchNo
Version as reversing switchNo
Version as emergency stop installationNo
Rated permanent current at AC-21, 400 V200A
Version as maintenance-/service switchYes
Rated permanent current Iu-A
Rated operating voltage1000 - 1000V
Rated permanent current at AC-23, 400 V200A
Max. rated operation voltage Ue AC1000V
Rated short-time withstand current lcw8kA
Rated operation power at AC-23, 400 V110kW
Switching power at 400 V110kW
Rated operation power at AC-3, 400 V-kW
Conditioned rated short-circuit current Iq-kA
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
Number of poles4
Device constructionBuilt-in device plug-in technique
Voltage release optionalNo
Suitable for intermediate mountingNo
Suitable for floor mountingNo
Motor drive integratedNo
Suitable for distribution board installationYes
Motor drive optionalNo
InterlockableYes
Type of control elementLong turning handle
Suitable for front mounting centreNo
Suitable for front mounting 4-holeYes
Type of electrical connection of main circuitScrew connection
With pre-assembled cablingNo
Degree of protection (IP), front sideIP20
Number of auxiliary contacts as change-over contact0
Width237mm
Degree of protection (NEMA)1
Colour control elementBlack
Height150mm
Depth160mm
Width in number of modular spacings-
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

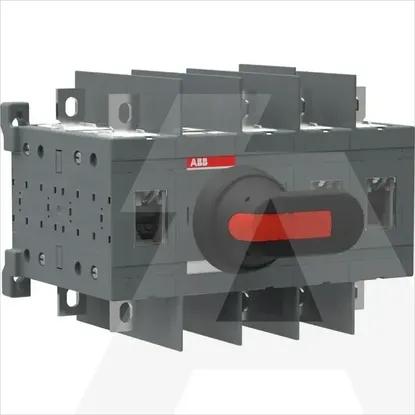

1SCA108549R1001 | OT200E13WCFP
