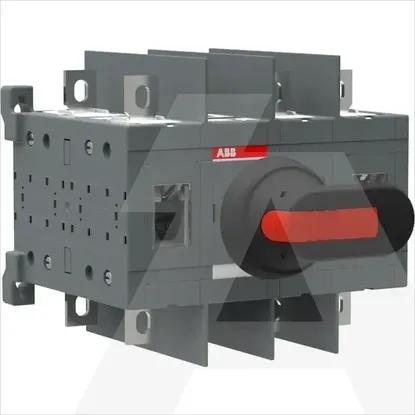

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Conditioned rated short-circuit current Iq-kA
Width194mm
Number of poles3
Height150mm
Width in number of modular spacings-
Depth160mm
Rated permanent current Iu-A
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Rated operating voltage1000 - 1000V
Rated operation power at AC-3, 400 V-kW
Number of switches1
Number of auxiliary contacts as change-over contact0
Degree of protection (IP), front sideIP20
InterlockableYes
Motor drive integratedNo
Type of electrical connection of main circuitScrew connection
Type of control elementLong turning handle
Version as safety switchNo
Version as maintenance-/service switchYes
Rated operation power at AC-23, 400 V140kW
Version as main switchYes
Rated short-time withstand current lcw8kA
Version as emergency stop installationNo
Colour control elementBlack
Suitable for floor mountingNo
Suitable for front mounting 4-holeYes
Rated permanent current at AC-21, 400 V250A
Suitable for distribution board installationYes
Max. rated operation voltage Ue AC1000V
Suitable for front mounting centreNo
Motor drive optionalNo
Suitable for intermediate mountingNo
Degree of protection (NEMA)1
Rated permanent current at AC-23, 400 V250A
Switching power at 400 V140kW
Version as reversing switchNo
With pre-assembled cablingNo
Device constructionBuilt-in device plug-in technique
Voltage release optionalNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
1SCA108612R1001 | OT250E12WCFP
