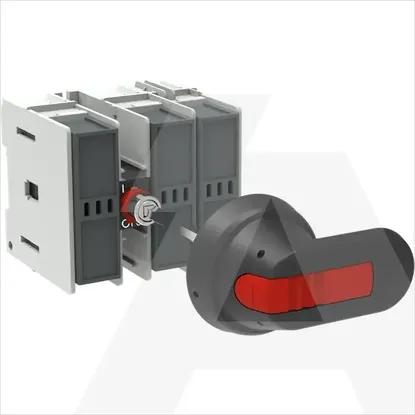

1SCA108642R1001 | OS32FF1214
Code: 1982135
ManufacturerABB
Catalog number1SCA108642R1001
TypeFuse switch disconnector
CategoryFuse switch disconnector
EAN code6417019419077
Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Cable entryOther
Conditioned rated short-circuit current Iq80kA
Version as safety switchYes
Version as main switchYes
Type of electrical connection of main circuitScrew connection
Version as emergency stop installationNo
Rated short-time withstand current lcw1kA
Suitable for floor mountingNo
Suitable for front mountingNo
Motor drive integratedNo
With error protectionNo
Position control elementFront side
Suitable for busbar mountingYes
Equipped with connectorsYes
Motor drive optionalNo
Rated operation power at AC-23, 400 V22kW
Type of control elementShort thumb-grip
Rated permanent current Iu32A
Number of poles3
Suitable for fuses14x51 mm
Max. rated operation voltage Ue AC1000V
