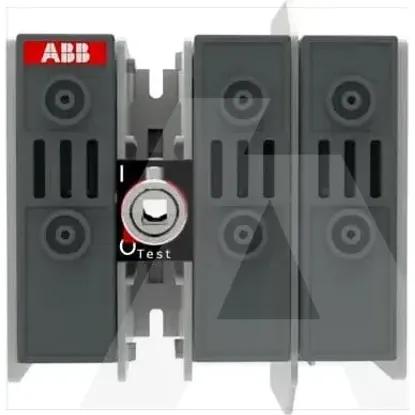

1SCA108824R1001 | OS30FAJ12
Code: 1982141
ManufacturerABB
Catalog number1SCA108824R1001
TypeFuse switch disconnector
CategoryFuse switch disconnector
EAN code6417019420912
Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Version as emergency stop installationNo
Conditioned rated short-circuit current Iq80kA
Cable entryOther
Rated operation power at AC-23, 400 V22kW
Type of control elementShort thumb-grip
Type of electrical connection of main circuitScrew connection
Version as main switchYes
Version as safety switchYes
Motor drive integratedNo
Rated short-time withstand current lcw1kA
Suitable for front mountingNo
Suitable for busbar mountingYes
Equipped with connectorsYes
Motor drive optionalNo
Suitable for floor mountingNo
Position control elementFront side
With error protectionNo
Rated permanent current Iu32A
Number of poles3
Suitable for fusesOther
Max. rated operation voltage Ue AC1000V
