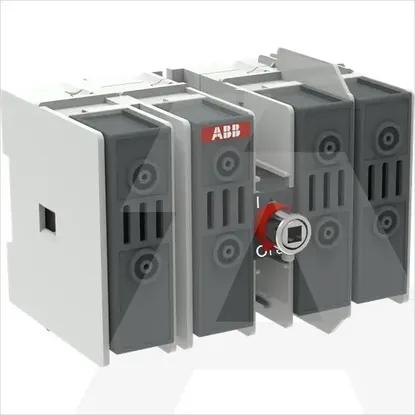

1SCA108829R1001 | OS30FAJ22F
Code: 1982142
ManufacturerABB
Catalog number1SCA108829R1001
TypeFuse switch disconnector
CategoryFuse switch disconnector
EAN code6417019421018
Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Rated operation power at AC-23, 400 V22kW
Type of electrical connection of main circuitScrew connection
Motor drive integratedNo
Version as main switchYes
Version as emergency stop installationNo
Conditioned rated short-circuit current Iq80kA
Cable entryOther
Suitable for busbar mountingYes
Type of control elementShort thumb-grip
Version as safety switchYes
Rated short-time withstand current lcw1kA
Suitable for floor mountingNo
Suitable for front mountingNo
Motor drive optionalNo
Equipped with connectorsYes
With error protectionNo
Position control elementFront side
Rated permanent current Iu32A
Number of poles4
Suitable for fusesOther
Max. rated operation voltage Ue AC1000V
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
1SCA108829R1001 | OS30FAJ22F
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Fuse switch disconnector
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Rated operation power at AC-23, 400 V
22kW
Type of electrical connection of main circuit
Screw connection
Motor drive integrated
Version as main switch
Version as emergency stop installation
Conditioned rated short-circuit current Iq
80kA
Cable entry
Other
Suitable for busbar mounting
Type of control element
Short thumb-grip
Version as safety switch
Rated short-time withstand current lcw
1kA
Suitable for floor mounting
Suitable for front mounting
Motor drive optional
Equipped with connectors
With error protection
Position control element
Front side
Rated permanent current Iu
32A
Number of poles
4
Suitable for fuses
Other
Max. rated operation voltage Ue AC
1000V
