Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Version as maintenance-/service switchYes
Rated permanent current Iu1250A
Version as safety switchNo
Rated permanent current at AC-21, 400 V1250A
Version as emergency stop installationNo
Max. rated operation voltage Ue AC1000V
Version as reversing switchNo
Rated operating voltage1000 - 1000V
Number of switches1
Rated permanent current at AC-23, 400 V1250A
Rated operation power at AC-23, 400 V710kW
Rated operation power at AC-3, 400 V-kW
Rated short-time withstand current lcw50kA
Switching power at 400 V710kW
Version as main switchYes
Conditioned rated short-circuit current Iq-kA
Motor drive optionalNo
Number of poles4
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as change-over contact0
Number of auxiliary contacts as normally closed contact0
Motor drive integratedNo
Suitable for floor mountingNo
Device constructionComplete device in housing
InterlockableNo
Voltage release optionalNo
Suitable for front mounting 4-holeNo
Suitable for front mounting centreNo
With pre-assembled cablingNo
Suitable for intermediate mountingNo
Suitable for distribution board installationYes
Colour control elementBlack
Type of control elementLong turning handle
Degree of protection (NEMA)Other
Type of electrical connection of main circuitBolt connection
Degree of protection (IP), front sideIP00
Width594.5mm
Depth145.5mm
Height306mm
Width in number of modular spacings-
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

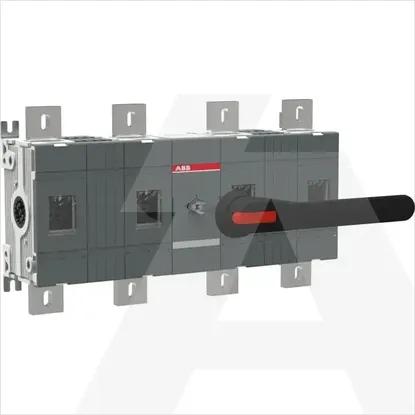

1SCA109221R1001 | OT1250E22W4P
