Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Rated operating voltage1000 - 1000V
Number of auxiliary contacts as normally closed contact0
Width201mm
Height250mm
Rated operation power at AC-3, 400 V-kW
Number of poles2
Rated permanent current Iu630A
Number of auxiliary contacts as normally open contact0
Depth140mm
Degree of protection (IP), front sideIP00
InterlockableNo
Suitable for distribution board installationYes
Version as safety switchNo
Number of auxiliary contacts as change-over contact0
Type of control elementLong turning handle
Width in number of modular spacings-
Conditioned rated short-circuit current Iq-kA
Suitable for intermediate mountingNo
Version as maintenance-/service switchYes
Version as main switchYes
Suitable for floor mountingNo
Max. rated operation voltage Ue AC1000V
Version as emergency stop installationNo
Rated operation power at AC-23, 400 V355kW
Motor drive optionalNo
Type of electrical connection of main circuitBolt connection
Suitable for front mounting 4-holeNo
Voltage release optionalNo
Motor drive integratedNo
Device constructionComplete device in housing
Suitable for front mounting centreNo
Number of switches1
Colour control elementBlack
Rated short-time withstand current lcw20kA
Switching power at 400 V355kW
With pre-assembled cablingNo
Rated permanent current at AC-21, 400 V630A
Rated permanent current at AC-23, 400 V630A
Version as reversing switchNo
Degree of protection (NEMA)Other
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

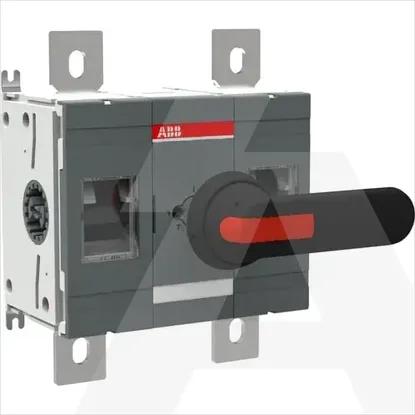

1SCA109802R1001 | OT630E11P
