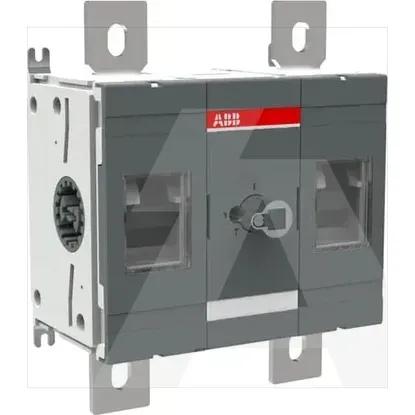

1SCA109859R1001 | OT800E11
Code: 1982169
ManufacturerABB
Catalog number1SCA109859R1001
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code6417019431123
Details
- •OT800E11 SWITCH-DISCONNECTOR
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Height250mm
Width201mm
Number of auxiliary contacts as normally open contact0
Rated operation power at AC-3, 400 V-kW
Depth140mm
Number of auxiliary contacts as normally closed contact0
Conditioned rated short-circuit current Iq-kA
Version as emergency stop installationNo
Motor drive integratedNo
InterlockableNo
Type of control elementOther
Type of electrical connection of main circuitBolt connection
Rated operating voltage1000 - 1000V
Number of auxiliary contacts as change-over contact0
Rated operation power at AC-23, 400 V450kW
Degree of protection (IP), front sideIP00
Suitable for front mounting 4-holeNo
Suitable for floor mountingNo
Suitable for intermediate mountingNo
Suitable for front mounting centreNo
Version as maintenance-/service switchYes
Version as safety switchNo
Number of switches1
Version as main switchYes
Suitable for distribution board installationYes
Width in number of modular spacings-
Rated short-time withstand current lcw20kA
Voltage release optionalNo
Motor drive optionalNo
Version as reversing switchNo
Rated permanent current at AC-23, 400 V800A
With pre-assembled cablingNo
Rated permanent current at AC-21, 400 V800A
Degree of protection (NEMA)Other
Switching power at 400 V450kW
Device constructionComplete device in housing
Rated permanent current Iu800A
Number of poles2
Max. rated operation voltage Ue AC1000V
