Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Number of auxiliary contacts as normally open contact0
Width334.5mm
Rated operation power at AC-3, 400 V-kW
Height306mm
Depth167mm
Number of auxiliary contacts as normally closed contact0
Width in number of modular spacings-
Rated permanent current Iu1000A
Conditioned rated short-circuit current Iq-kA
Number of poles3
Number of switches1
InterlockableNo
Number of auxiliary contacts as change-over contact0
Rated operating voltage1000 - 1000V
Degree of protection (IP), front sideIP00
Version as safety switchNo
Type of electrical connection of main circuitBolt connection
Version as main switchYes
Version as emergency stop installationNo
Version as maintenance-/service switchYes
Type of control elementLong turning handle
Motor drive integratedNo
Rated short-time withstand current lcw50kA
Rated operation power at AC-23, 400 V560kW
Suitable for intermediate mountingNo
Suitable for distribution board installationYes
Suitable for front mounting 4-holeNo
Colour control elementBlack
Suitable for floor mountingNo
Suitable for front mounting centreNo
Switching power at 400 V560kW
With pre-assembled cablingNo
Voltage release optionalNo
Motor drive optionalNo
Max. rated operation voltage Ue AC1000V
Rated permanent current at AC-21, 400 V1000A
Degree of protection (NEMA)Other
Rated permanent current at AC-23, 400 V1000A
Device constructionComplete device in housing
Version as reversing switchNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

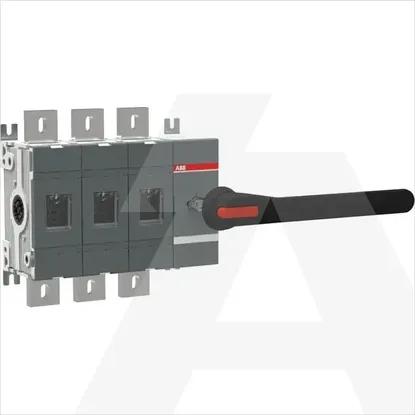

1SCA110065R1001 | OT1000E30P
