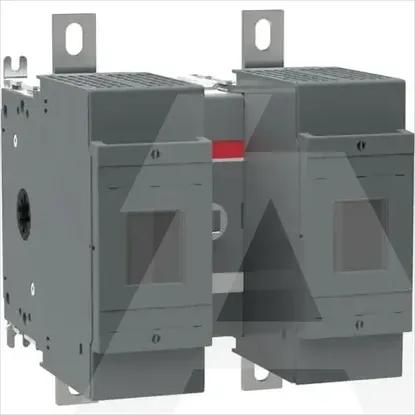

1SCA110201R1001 | OS400D11
Code: 1982172
ManufacturerABB
Catalog number1SCA110201R1001
TypeFuse switch disconnector
CategoryFuse switch disconnector
EAN code6417019434322
Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Conditioned rated short-circuit current Iq80kA
Cable entryOther
Version as emergency stop installationNo
Rated operation power at AC-23, 400 V400kW
Rated short-time withstand current lcw14kA
Type of electrical connection of main circuitBolt connection
Suitable for floor mountingNo
With error protectionNo
Type of control elementShort thumb-grip
Version as safety switchYes
Suitable for front mountingNo
Version as main switchYes
Suitable for busbar mountingYes
Motor drive integratedNo
Motor drive optionalNo
Equipped with connectorsYes
Position control elementFront side
Rated permanent current Iu400A
Number of poles2
Suitable for fusesNH0
Max. rated operation voltage Ue AC1000V
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
1SCA110201R1001 | OS400D11
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Fuse switch disconnector
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Conditioned rated short-circuit current Iq
80kA
Cable entry
Other
Version as emergency stop installation
Rated operation power at AC-23, 400 V
400kW
Rated short-time withstand current lcw
14kA
Type of electrical connection of main circuit
Bolt connection
Suitable for floor mounting
With error protection
Type of control element
Short thumb-grip
Version as safety switch
Suitable for front mounting
Version as main switch
Suitable for busbar mounting
Motor drive integrated
Motor drive optional
Equipped with connectors
Position control element
Front side
Rated permanent current Iu
400A
Number of poles
2
Suitable for fuses
NH0
Max. rated operation voltage Ue AC
1000V
