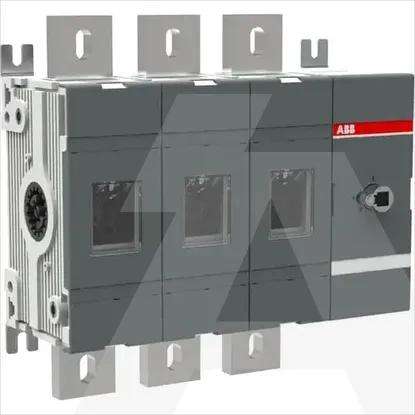

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Rated permanent current Iu1000A
Width334.5mm
Number of poles3
Depth145.5mm
Width in number of modular spacings-
Rated operation power at AC-3, 400 V-kW
Version as emergency stop installationNo
Height306mm
Motor drive integratedNo
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as change-over contact0
InterlockableNo
Rated operating voltage1000 - 1000V
Number of switches1
Degree of protection (IP), front sideIP00
Number of auxiliary contacts as normally closed contact0
Conditioned rated short-circuit current Iq-kA
Type of electrical connection of main circuitBolt connection
Type of control elementOther
Version as main switchYes
Suitable for front mounting centreNo
Suitable for front mounting 4-holeNo
Switching power at 400 V560kW
Version as maintenance-/service switchYes
Device constructionComplete device in housing
Rated short-time withstand current lcw50kA
Version as safety switchNo
Rated permanent current at AC-23, 400 V1000A
With pre-assembled cablingNo
Suitable for distribution board installationYes
Version as reversing switchNo
Suitable for floor mountingNo
Suitable for intermediate mountingNo
Rated permanent current at AC-21, 400 V1000A
Voltage release optionalNo
Motor drive optionalNo
Degree of protection (NEMA)Other
Rated operation power at AC-23, 400 V560kW
Max. rated operation voltage Ue AC1000V
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
1SCA110233R1001 | OT1000E30
