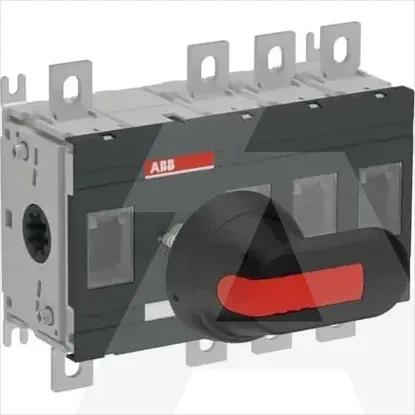

1SCA110861R1001 | OT250E13P
Code: 1982179
ManufacturerABB
Catalog number1SCA110861R1001
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code6417019440422
Details
- •OT250E13P SWITCH-DISCONNECTOR
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Depth82.5mm
Height150mm
Width185.5mm
Rated operation power at AC-3, 400 V-kW
Number of auxiliary contacts as normally closed contact0
Width in number of modular spacings-
Degree of protection (IP), front sideIP00
Number of auxiliary contacts as normally open contact0
Conditioned rated short-circuit current Iq-kA
Rated operating voltage1000 - 1000V
Version as emergency stop installationNo
Version as main switchYes
Number of auxiliary contacts as change-over contact0
InterlockableNo
Version as safety switchNo
Type of control elementLong turning handle
Motor drive integratedNo
Type of electrical connection of main circuitBolt connection
Version as maintenance-/service switchYes
Number of switches1
Switching power at 400 V145kW
Suitable for intermediate mountingNo
Suitable for distribution board installationYes
Motor drive optionalNo
Rated operation power at AC-23, 400 V145kW
Suitable for front mounting centreNo
Voltage release optionalNo
Rated permanent current at AC-21, 400 V250A
Colour control elementBlack
Version as reversing switchNo
Device constructionComplete device in housing
Suitable for front mounting 4-holeNo
Suitable for floor mountingNo
Rated short-time withstand current lcw8kA
Degree of protection (NEMA)Other
Rated permanent current at AC-23, 400 V250A
With pre-assembled cablingNo
Rated permanent current Iu250A
Number of poles4
Max. rated operation voltage Ue AC1000V
