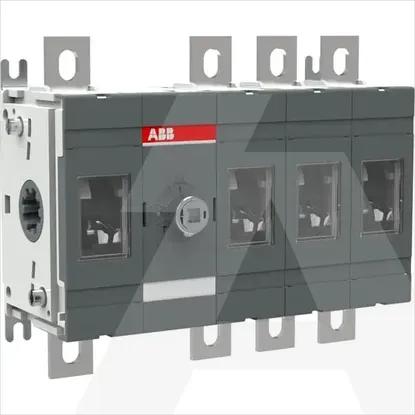

1SCA110880R1001 | OT250E13
Code: 1982180
ManufacturerABB
Catalog number1SCA110880R1001
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code6417019440620
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Width180.5mm
Rated operation power at AC-3, 400 V-kW
Number of auxiliary contacts as normally open contact0
Height150mm
Depth82.5mm
Number of switches1
Rated operating voltage1000 - 1000V
Width in number of modular spacings-
Number of auxiliary contacts as change-over contact0
Degree of protection (IP), front sideIP00
Number of auxiliary contacts as normally closed contact0
Conditioned rated short-circuit current Iq-kA
Rated operation power at AC-23, 400 V145kW
Rated short-time withstand current lcw8kA
Version as maintenance-/service switchYes
Motor drive integratedNo
Version as safety switchNo
Type of control elementOther
Rated permanent current at AC-21, 400 V250A
Version as main switchYes
Suitable for front mounting 4-holeNo
Type of electrical connection of main circuitBolt connection
Suitable for front mounting centreNo
Suitable for intermediate mountingNo
Switching power at 400 V145kW
Suitable for distribution board installationYes
Voltage release optionalNo
Version as reversing switchNo
Version as emergency stop installationNo
Device constructionComplete device in housing
InterlockableNo
Suitable for floor mountingNo
Motor drive optionalNo
Degree of protection (NEMA)Other
Rated permanent current at AC-23, 400 V250A
With pre-assembled cablingNo
Rated permanent current Iu250A
Number of poles4
Max. rated operation voltage Ue AC1000V
