Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Number of auxiliary contacts as normally open contact0
Height185mm
Number of auxiliary contacts as normally closed contact0
Width240mm
Rated permanent current Iu315A
Number of poles4
Rated operation power at AC-3, 400 V-kW
Depth107mm
Width in number of modular spacings-
Conditioned rated short-circuit current Iq-kA
Rated operating voltage1000 - 1000V
Number of auxiliary contacts as change-over contact0
Number of switches1
Rated operation power at AC-23, 400 V180kW
Version as safety switchNo
Version as emergency stop installationNo
Voltage release optionalNo
Type of control elementOther
InterlockableNo
Suitable for intermediate mountingNo
Version as maintenance-/service switchYes
Suitable for floor mountingNo
Motor drive optionalNo
Degree of protection (IP), front sideIP00
Version as main switchYes
Type of electrical connection of main circuitBolt connection
Suitable for front mounting centreNo
Max. rated operation voltage Ue AC1000V
Suitable for front mounting 4-holeNo
Suitable for distribution board installationYes
Rated short-time withstand current lcw15kA
Motor drive integratedNo
Switching power at 400 V180kW
Rated permanent current at AC-21, 400 V315A
Device constructionComplete device in housing
Degree of protection (NEMA)Other
Rated permanent current at AC-23, 400 V315A
Version as reversing switchNo
With pre-assembled cablingNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

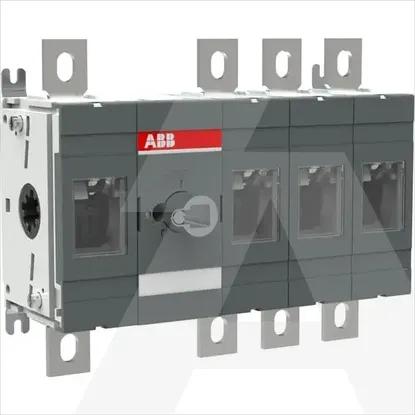

1SCA110882R1001 | OT315E13
