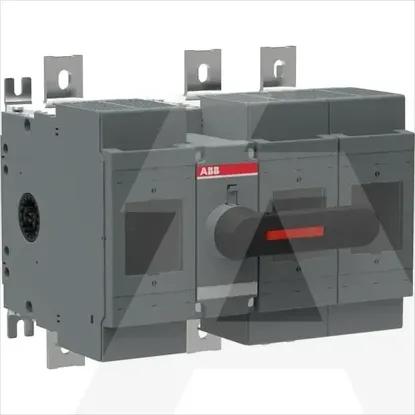

1SCA111535R1001 | OS630D12K
Code: 1982201
ManufacturerABB
Catalog number1SCA111535R1001
TypeFuse switch disconnector
CategoryFuse switch disconnector
EAN code6417019434643
Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Cable entryOther
Type of control elementLong turning handle
Version as main switchYes
Motor drive integratedNo
Type of electrical connection of main circuitBolt connection
Rated operation power at AC-23, 400 V630kW
Conditioned rated short-circuit current Iq80kA
Version as safety switchYes
Version as emergency stop installationNo
Suitable for floor mountingNo
Rated short-time withstand current lcw18kA
Motor drive optionalNo
With error protectionNo
Suitable for front mountingNo
Equipped with connectorsYes
Suitable for busbar mountingYes
Position control elementFront side
Rated permanent current Iu570A
Number of poles3
Suitable for fusesNH3
Max. rated operation voltage Ue AC1000V
