Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Version as maintenance-/service switchYes
Version as safety switchNo
Version as emergency stop installationNo
Version as main switchYes
Rated permanent current at AC-21, 400 V630A
Version as reversing switchNo
Rated permanent current Iu630A
Rated short-time withstand current lcw20kA
Rated permanent current at AC-23, 400 V630A
Number of switches1
Switching power at 400 V355kW
Max. rated operation voltage Ue AC1000V
Rated operation power at AC-3, 400 V-kW
Rated operating voltage1000 - 1000V
Rated operation power at AC-23, 400 V355kW
Conditioned rated short-circuit current Iq-kA
Number of auxiliary contacts as change-over contact0
Voltage release optionalNo
Suitable for front mounting 4-holeNo
Motor drive integratedNo
Number of poles1
Device constructionComplete device in housing
Number of auxiliary contacts as normally open contact0
Suitable for intermediate mountingNo
Motor drive optionalNo
Suitable for front mounting centreNo
Type of electrical connection of main circuitBolt connection
InterlockableNo
With pre-assembled cablingNo
Type of control elementLong turning handle
Width136mm
Degree of protection (NEMA)Other
Degree of protection (IP), front sideIP00
Suitable for distribution board installationYes
Number of auxiliary contacts as normally closed contact0
Colour control elementBlack
Suitable for floor mountingNo
Depth140mm
Height250mm
Width in number of modular spacings-
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

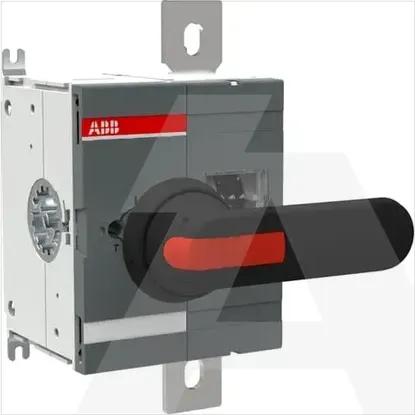

1SCA111680R1001 | OT630E01P
