Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Version as main switchYes
Version as emergency stop installationNo
Version as maintenance-/service switchYes
Version as safety switchNo
Number of switches1
Max. rated operation voltage Ue AC750V
Rated permanent current Iu125A
Rated permanent current at AC-23, 400 V90A
Version as reversing switchNo
Rated permanent current at AC-21, 400 V125A
Rated operating voltage750 - 750V
Switching power at 400 V45kW
Rated short-time withstand current lcw2.5kA
Rated operation power at AC-23, 400 V45kW
Conditioned rated short-circuit current Iq-kA
Rated operation power at AC-3, 400 V-kW
Motor drive optionalNo
Device constructionComplete device in housing
Voltage release optionalNo
Suitable for front mounting 4-holeNo
Motor drive integratedNo
Number of auxiliary contacts as normally closed contact0
Number of poles3
Number of auxiliary contacts as change-over contact0
Suitable for intermediate mountingNo
Number of auxiliary contacts as normally open contact0
Suitable for front mounting centreNo
InterlockableNo
Type of control elementOther
Suitable for distribution board installationYes
Suitable for floor mountingNo
With pre-assembled cablingNo
Type of electrical connection of main circuitScrew connection
Degree of protection (NEMA)Other
Width90mm
Degree of protection (IP), front sideIP20
Width in number of modular spacings-
Height181.5mm
Depth74mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

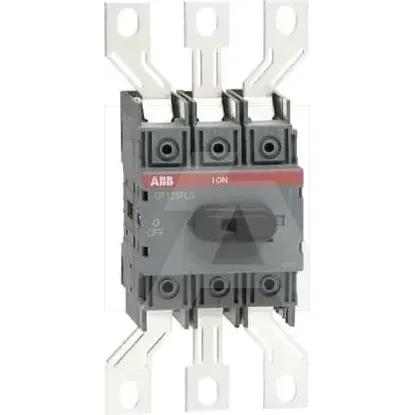

1SCA112372R1001 | OT125FL3
