Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Depth107mm
Number of auxiliary contacts as normally open contact0
Rated operating voltage1000 - 1000V
Height150mm
Number of auxiliary contacts as normally closed contact0
Conditioned rated short-circuit current Iq-kA
Rated operation power at AC-3, 400 V-kW
Width255.5mm
Motor drive integratedNo
Number of auxiliary contacts as change-over contact0
Number of switches1
Width in number of modular spacings-
Version as main switchYes
Type of electrical connection of main circuitBolt connection
Degree of protection (IP), front sideIP00
InterlockableNo
Type of control elementLong turning handle
Version as emergency stop installationNo
Rated permanent current Iu200A
Rated operation power at AC-23, 400 V-kW
Rated short-time withstand current lcw8kA
Version as maintenance-/service switchYes
Version as safety switchNo
Number of poles6
Suitable for distribution board installationYes
Suitable for front mounting centreNo
Device constructionComplete device in housing
Suitable for front mounting 4-holeNo
Rated permanent current at AC-21, 400 V-A
Motor drive optionalNo
Voltage release optionalNo
Suitable for floor mountingNo
Suitable for intermediate mountingNo
Version as reversing switchNo
Degree of protection (NEMA)Other
Switching power at 400 V-kW
Colour control elementBlack
Rated permanent current at AC-23, 400 V-A
With pre-assembled cablingNo
Max. rated operation voltage Ue AC1000V
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

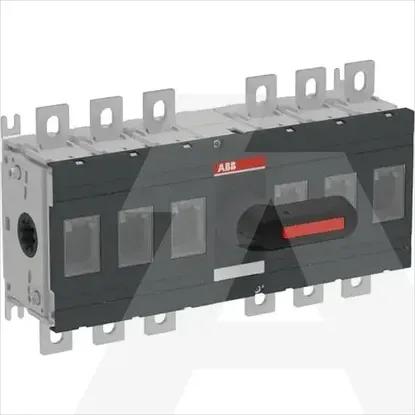

1SCA112975R1001 | OT200E33K
